UML State Diagram


done by Osamah

" UML Sequence Diagram "


Done by Osamah Ibrahiem

UML Activity Diagram



Done by Zaki Syahmi

Entity Relationship Diagram




Done by Brian Mukasa

DFD(Data Flow Diagram) Level 1


Done By Osamah Ibrahiem

Context diagram - DFD(Data Flow Diagram) Level 0



Done by Osamah Ibrahiem

Use Case Diagram Description

For Website Visitor, Registered Customer

Use case title : Search Product

Input : search keyword criteria

Output : Keyword related products

Use case title : Select product categories

Input : Choose from categories listing

Output : Desired category

Use case title : Review product

Input : Choose the product to be review

Output : Description of the product details

For Website Users (Visitors)

Use case title : Register

Input : Login ID, Password, Full Name, E-mail, Gender, Date of Birth, Age, Address, Contact No.

Output : Store Login ID, Password, Full Name, E-mail, Gender, Date of Birth, Age, Address, Contact No.

Users are required to register before start buying the products. This system will store the

user information into the MySQL database so that the user can starts buying the item

from the system.

For Registered Customer and Web Administrator

Use case title : Sign in / Check in

Input : Login ID and Password

Output : Login as a registered customer or as an administrator

Use caste title : Sign out / Check out

Input : Log out button

Output : Log out user from the system and log out message prompt out.

For Customer

Use case title : Add product to shopping cart

Input : Select desired product and quantity

output : Confirmation message on the desired product and quantity.

Use case title : Choose payment option

Input : Select the desired shipping and payment option.

Output : Confirmation message box of the transaction and

check out from shopping cart.

For Web Administrator

Use case title : Manage categories

Input : add or delete categories.

Output : new categories listing

Use case title : Manage products

Input : add,delete or modify products and details.

Output : Updated product listing and details.

Use case title : Manage user status

Input : Review or delete the membership status

Output : Updated user listing.

Zaki Syahmi

Mohd Nur Aizad Aziddin

Programming Leader

Checked by Kaddu Shaban-Project leader

THE UML DIAGRAM
Zaki Syahmi
Mohd Nur Aizad Aziddin
Programming Leaders
checked by Kaddu Shaban-Project Leader

Our team adopted the waterfall model.This is one of the most widely used process models.Prior to choosing a process model, the group discussed the requirements needed. We needed a model that enable changes (adaption,enhancement,preventive maintenance and correction) It should be noted that in this model activities flow from one phase to another systematically and sequentially. The lifecycle also enable changes,returning to a previous phase and flowing from there again.This lifecycle is good for planning and well defined repeated projects( many shopping carts being designed around the world)

Osaama Ibrahiem-Design Leader

Brian Mukasa-Documentation Manager

checked by

Kaddu Shaban- Project Leader

this is a gantt chart displaying activity progress


this is an Arrow on Activity Diagram
Minutes of Meeting held on July 6th 2009
11.00am Foe 2024
the group welcomed two new members
Zaki Syahmi Zulkifli and Mohd Nur Aizad Aziddin
they have been charged with helping out with the programming
Osaama also brought foward ideas for the company logo and said he was stil developing a design for our shopping cart which he promised to deliver to us.
Update on progress to continue.
Brian Mukasa-Documentation Manager

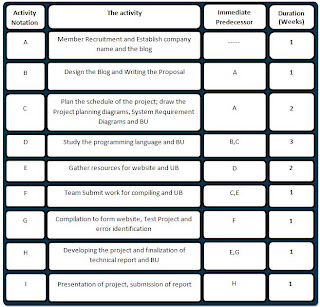

Activity precedence

A. Member Recruitment,Establish company name and the blog

B. Proposal, Blog Design, Study programming language, Blog Update

C. Gantt chart, Study programming language to be used, Blog update

D. Plan the schedule of the project, Project planning diagram, System Requirement Diagrams, Blog update, Gather resources for website

E. Design diagrams (UMI ERD), Blog update, Gather resources for website, Study the programming language

F. Blog update, Gather resources for website

G. Blog Update, Gather resources for website

H. Blog Update, Gather resources for website

I. Team Submit work for compiling

J. Compilation to form website, Test Project

K. Finalisation of technical report, Test project

L. Presentation of project, submission of report

Minutes from meeting on saturday 4th july 2009

We held a meeting at 9pm at C1-11-11

During this meeting we discovered we shall remain only three members and so re evaluated our proposals including our planning

The Gantt chart was finalised and will be uploaded soon

We also agreed on a design for our shopping cart and an assignment was given to Osamah to come up with a logo and also gather data on the products we shall be selling

Brian also said he would upload our activity progress diagram latest Monday(Gantt chart, AOA,Network chart)

We also finalised details on our weekly progress
